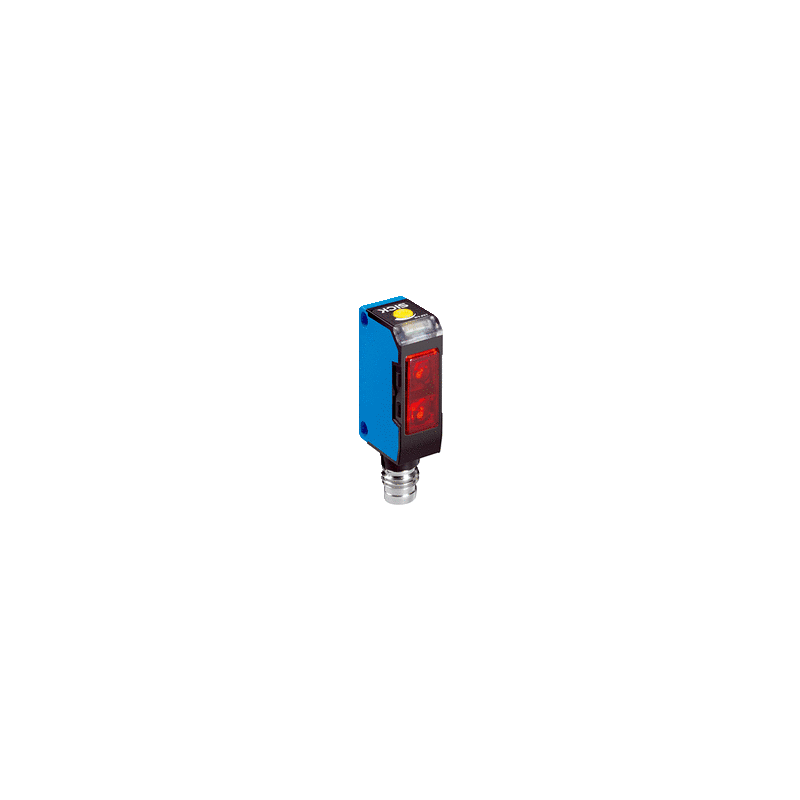

WT150-P460 SICK Photoelectric proximity sensor, Background suppression
$176.00
| Sensor/ detection principle | Photoelectric proximity sensor, Background suppression |
| Dimensions (W x H x D) | 10 mm x 28 mm x 18 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 2 mm ... 100 mm 1) |
| Type of light | Visible red light |
| Light source | LED 2) |
| Angle of dispersion | Approx. 5° |
| Adjustment | Potentiometer, 5 turns |
-
Security policy (edit with Customer reassurance module)
-
Delivery policy (edit with Customer reassurance module)
-
Return policy (edit with Customer reassurance module)
| Supply voltage | 10 V DC ... 30 V DC 1) |
| Ripple | ± 10 % 2) |
| Power consumption | 20 mA 3) |
| Switching output | PNP |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via L/D control cable |
| Output current Imax. | ≤ 100 mA |
| Response time | ≤ 0.5 ms 4) |
| Switching frequency | 1,000 Hz 5) |
| Connection type | Male connector M8, 4-pin |
| Circuit protection |
A 6) B 7) C 8) D 9) |
| Protection class | II |
| Weight | 7 g |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PC |
| Enclosure rating | IP67 |
| Items supplied | BEF-W150-A mounting bracket |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient storage temperature | –40 °C ... +75 °C |
